Tsis-PVC mos lub hnab IV tshuaj turnkey cog

Non-PVC soft bag IV solution turnkey plant Featured Image
  • Non-PVC soft bag IV solution turnkey plant
  • Non-PVC soft bag IV solution turnkey plant
  • Non-PVC soft bag IV solution turnkey plant
  • Non-PVC soft bag IV solution turnkey plant

Qhia Taw Qhia:

IVEN Pharmatech yog tus muab khoom ua ntej ntawm cov nroj tsuag cog uas muab kev sib xyaw tsim kho rau thoob ntiaj teb kev lag luam kws tshuaj xws li IV tshuaj, tshuaj tiv thaiv, oncology thiab lwm yam, ua raws EU GMP, US FDA cGMP, PICS, thiab WHO GMP.

Peb muab cov phiaj xwm tsim nyog tshaj plaws, cov cuab yeej siv tau zoo thiab cov kev pabcuam tshwj xeeb rau cov chaw tsim tshuaj thiab cov khoom siv kho mob sib txawv los ntawm A txog Z rau Tsis-PVC mos lub hnab IV tshuaj, PP lub raj mis IV daws, iav vial IV tshuaj, Txhaj Vial & ampoule, Syrup, Ntsiav Tshuaj & Capsules, Nqus cov ntshav nqus raj thiab lwm yam.


Khoom nthuav dav

Khoom cim npe

Khoom Piav Qhia:

IVEN Pharmatech yog tus muab khoom ua ntej ntawm cov nroj tsuag cog uas muab kev sib xyaw tsim kho rau thoob ntiaj teb kev lag luam kws tshuaj xws li IV tshuaj, tshuaj tiv thaiv, oncology thiab lwm yam, ua raws EU GMP, US FDA cGMP, PICS, thiab WHO GMP.

Peb muab cov phiaj xwm tsim nyog tshaj plaws, cov cuab yeej siv tau zoo thiab cov kev pabcuam tshwj xeeb rau cov chaw tsim tshuaj thiab cov khoom siv kho mob sib txawv los ntawm A txog Z rau Tsis-PVC mos lub hnab IV tshuaj, PP lub raj mis IV daws, iav vial IV tshuaj, Txhaj Vial & ampoule, Syrup, Ntsiav Tshuaj & Capsules, Nqus cov ntshav nqus raj thiab lwm yam.

1

IVEN Non-PVC soft bag IV solution turnkey project suav nrog:

2
101
102

Khoom Video

Nqe lus piav qhia

IVEN kev sib xyaw ua ke daws teeb meem rau tshuaj thiab chaw kho mob suav nrog chav huv, pib tswj thiab tshuaj xyuas, tshuaj kho dej tshuaj, tshuaj npaj thiab xa khoom, sau thiab ntim khoom, tsis siv neeg logistics system, tswj kev ua haujlwm zoo, hauv chaw kuaj hauv nruab nrab thiab lwm yam. Tsom ntsoov rau cov neeg siv khoom cov kev xav tau tshwj xeeb, IVEN hloov kho cov kev daws teeb meem zoo rau cov neeg siv ntawm:

*Kev pab tswv yim ua ntej engineering
*Kev xaiv cov txheej txheem ntau lawm
*Kev xaiv cov qauv khoom siv thiab kev hloov kho
*Kev teeb tsa thiab commissioning
*Kev lees paub cov cuab yeej thiab txheej txheem
*Kev hloov pauv thev naus laus zis ntau lawm
*Cov ntaub ntawv nyuaj thiab muag
*Kev cob qhia rau cov neeg ua haujlwm txawj thiab lwm yam.

Cov khoom lag luam cov kauj ruam

1.Non-PVC soft bag IV solution Forming-Filling-Sealing ntau lawm kab:

Kab no yog siv los tsim IV lub hnab los ntawm Tsis-PVC (PP) zaj duab xis, thiab ua tiav lub hnab tsim, luam ntawv, sau thiab ntim los ntawm tib lub tshuab.
IV lub hnab ntim loj li ntawm 100ml - 5000ml. Tsuas yog xav tau ib nrab teev los hloov ntawm ib qho me me mus rau lwm qhov. Nws muaj qhov tshwj xeeb tsim ntawm 130mm dav kom txuag tau zaj duab xis, tseem tuaj yeem paub txog 100% kev siv zaj duab xis, tsis muaj cov khoom pov tseg.

103
100
104
105

2.Sterilizing system:

Nws tau siv los ua kom tsis muaj menyuam lub hnab IV ua tiav los ntawm cov dej sov ntawm 121 ℃. Lub sijhawm ua kom tsis muaj menyuam tuaj yeem suav txij li 15 - 30 feeb raws li qhov sib txawv tsim khoom siv tshuab, kev ntsuas kom sov tuaj yeem kho tau.
Peb tuaj yeem nruab nrog tsis siv neeg IV lub hnab ntim khoom thiab tshem tawm lub tshuab, tseem siv lub tshuab ua kom tsis muaj menyuam tsis muaj menyuam conveying system raws li kev xaiv.

106
107
108
109

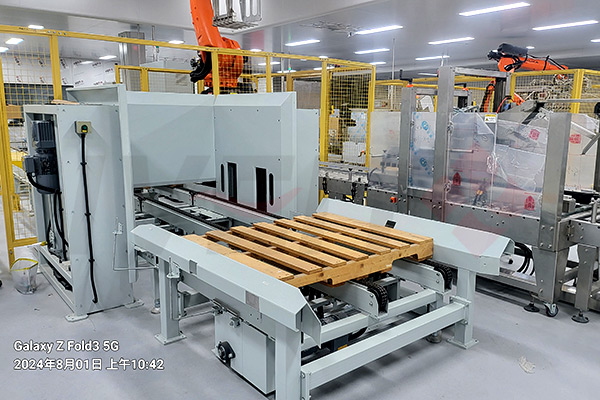

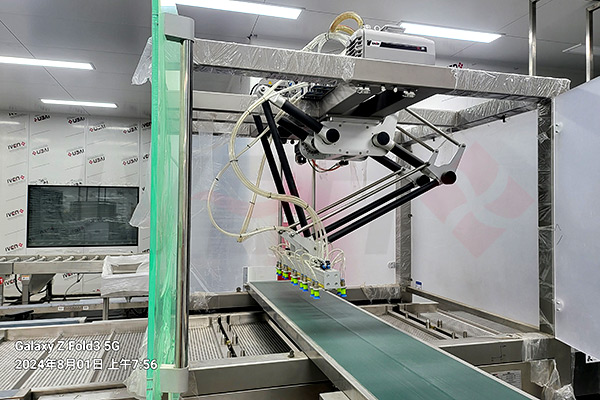

3.Packing system:

Nws tuaj yeem ua tiav IV lub hnab kom qhuav, nrhiav kom pom, kuaj lub teeb, rov ua dua thiab ntim cov thawv.
Peb tuaj yeem nruab nrog lub thawv xa khoom xa tuaj tsis siv neeg, qhib phau ntawv qhia thiab daim ntawv pov thawj tso rau hauv, thawv ntim, thawv ntim khoom, labeling, cov ntaub ntawv tshawb nrhiav kab ke, thiab pib tsis lees paub lub kaw lus, uas tuaj yeem tsis lees txais cov thawv ntawv nrog qhov hnyav tsis raug, lossis cov uas tsis tsim nyog daim ntawv lo.

4.Muaj tshuaj kho dej:

Nws suav nrog kev kho dej kom huv (2RO+EDI), dej tso dej (WFI), thiab lub tshuab ua kom dej ntshiab. Lub tank PW thiab lub tank WFI tau suav nrog.

5.Txoj kev npaj daws teeb meem:

Nws yog siv los sib tov tshuaj nrog dej txhaj ua ke. Peb nruab nrog 2 teeb ntawm kev daws teeb meem tso tsheb hlau luam, nrog Mettler-Toledo load cell, thiab sib nqus sib zog ua haujlwm.

6. Huv chav & HVAC:

Nws suav nrog chav huv phab ntsa vaj huam sib luag, qab nthab vaj huam sib luag, qhov rai, qhov rooj, pem teb, teeb pom kev zoo, chav tswj huab cua, HEPA lim dej, cov pa cua, ceeb toom, pib tswj qhov system thiab lwm yam. .

7.Black nqi hluav taws xob

Nws suav nrog lub tshuab cua tshuab thiab lub tshuab rhaub dej kom muab cov cua tsim nyog thiab cov pa rau Cov Tsis-PVC lub hnab muag IV daws cov khoom tsim tawm.

8. Kuaj:

Nws suav nrog txhua yam kev ntsuas ntsuas ntsuas, thiab cov rooj tog zaum lab txhawm rau ntsuas IV lub hnab ntim khoom thiab cov khoom siv raw, xws li chav ruaj khov, HPLC, nqus cov pa nqus, ultraviolet spectrometer, plaub npaug hloov lub tshuab hluav taws xob spectrometer thiab lwm yam.

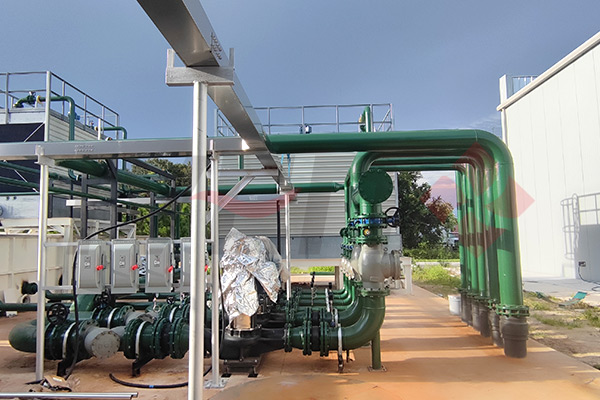

9.Txoj kev faib tawm & cov raj xa dej:

Nws suav nrog txhua yam txheej txheem txheej txheem thiab cov kav xa dej xav tau hauv Cov Tsis-PVC IV lub hnab ntim cog cog, xws li dej huv, txhaj tshuaj, dej ntshiab, dej txias, dej txias, cua txias, cua txias, thiab lwm yam.

Qhov zoo tseem ceeb ntawm IVEN Tsis-PVC mos lub hnab IV daws cov kab ntau lawm:

* 100% kev siv zaj duab xis: tsis muaj pov tseg ntug ntawm txhua ob lub hnab IV, txo cov khoom siv thiab lub zog.
* Txhim khu kev ntseeg cua sov thiab vuam tshuab: Ua kom ntseeg tau tias tus nqi xau rau IV hnab tsawg dua 0.03%.
* Kev hloov pauv sai: Tsuas yog xav tau 0.5-1 teev los hloov ntawm ib lub hnab IV loj mus rau lwm qhov.
* Cov qauv kev cog lus, txo 1/3 ntev ntawm lub tshuab, txuag chaw chaw thiab khiav tus nqi.
* Kev ua haujlwm ruaj khov thiab kis tau tus mob: siv qhov chaw sib txuas tsim, tsuas xav tau 1 kev tswj hwm, 1 HMI thiab 1 tus neeg ua haujlwm.
* Kev nyab xeeb ntim lub taub ntim: Txais kev tiv thaiv kev tiv thaiv kev tiv thaiv kev sau, tsis muaj kev daws teeb meem, tsis muaj cov khoom tsim tawm thaum IV ntim cov txheej txheem.
* Pib tshawb pom thiab ua tsis raug qhov system kom tsis lees txais qhov tsis tsim nyog IV lub hnab ntim tom qab lub hau vuam.

Tus nqi txuag ntawm IVEN patent tsim IV hnab:
a.Special IV lub hnab tsim nrog qhov dav ntawm 130mm, ib lub hnab IV tuaj yeem txuag 10mm zaj duab xis ntau dua li lwm tus neeg muag khoom.
b. Tsis muaj pov tseg ntug ntawm IV hnab thiab pab pawg, 100% siv zaj duab xis.
c.Can txuag tau 250 iv hnab ntau dua ib yob ntawm zaj duab xis dua lwm qhov nrog qhov dav ntawm 135mm

1028
1029
1030

IVEN muaj cov kws tshaj lij tshaj lij thiab pab pawg tsim qauv, peb qhov kev cob qhia tom qab thiab kev txhawb nqa tom qab muag tuaj yeem muab kev lees paub lub sijhawm ntev rau koj li NON-PVC IV kua turnkey cog:

1031
1032

IVEN Cov ntaub ntawv tag nrho tuaj yeem pab koj tau txais GMP & FDA daim ntawv pov thawj rau koj cov kua dej IV yooj yim (suav nrog IQ / OQ / PQ / DQ / FAT / SAT thiab lwm yam ua lus Askiv thiab Suav):

1033
1035

IVEN txoj haujlwm thiab kev paub dhau los tuaj yeem pab koj ua tiav tag nrho IV kev daws teeb meem cog cog hauv lub sijhawm luv tshaj thiab zam txhua yam kev pheej hmoo txaus ntshai:

1036
1039
1037
1040
1041
1038

IVEN cov kws kho mob txawv teb chaws turnkey cog cov neeg siv khoom:

1043
1044

Txog tam sim no, peb twb tau muab ntau pua cov khoom siv tshuaj thiab khoom siv kho mob rau ntau dua 50 lub tebchaws.

Lub caij no, peb tau pab peb cov neeg siv khoom los tsim 20+ cov chaw tsim tshuaj thiab tshuaj kho mob hauv tebchaws Russia, Uzbekistan, Tajikistan, Indonesia, Thaib, Saudi, Iraq, Nigeria, Nigeria, Uganda, Tanzania, Ethiopia, Myanmar thiab lwm yam, feem ntau yog rau IV daws, txhaj tshuaj vials thiab ampoules . Txhua qhov haujlwm no yeej peb cov neeg siv khoom thiab lawv cov lus pom zoo los ntawm tsoomfwv.

Peb kuj tau xa tawm peb txoj kev daws teeb meem IV rau German.

1045
1034

Indonesia IV lub raj mis turnkey cog

Nyab Laj IV lub raj mis turnkey cog

1047
1048

Uzbekistan IV lub raj mis turnkey cog

1049

Thaib Txhaj Tshuaj Vial Turnkey Plant

Tajikistan IV lub raj mis turnkey cog

1046

Saudi Arabia IV lub hnab turnkey cog

Muaj peev xwm ntau yam ntawm IVEN Tsis-PVC mos lub hnab IV tshuaj turnkey cog:

Yam khoom Cov Ntsiab Lus Tseem Ceeb
Qauv SWB 1A SWB 2A SWB 2A SWB 3A SWB 4A SWB 4A SWB 6A SWB 12A
Muaj Peev Xwm Ntau Lawm 100 ml 1000 2200 2200 3200 4000 4000 5500 10000
250ML 1000 2200 2200 3200 4000 4000 5500 10000
500ML 900 2000 2000 2800 3600 3600 5000 8000
1000ML 800 1600 1600 2200 3000 3000 4500 7500
Hwj chim Source 3 Theem 380V 50Hz
Fais fab 8 KWG 22 KWG 22 KWG 26 KWG 32 KWG 28 KWG 32 KWG 60 KWG
Compressed Cua Siab Cov huab cua qhuav thiab tsis muaj roj, tsis huv yog 5um, siab tshaj 0.6Mpa.Qhov tshuab yuav ceeb toom thiab nres thaum lub siab qis dhau
Compressed Cua Siv 1000L/feeb 2000L/feeb 2200L/feeb 2500L/feeb 3000L/feeb 3800L/feeb 4000L/feeb 7000L/feeb
Ntxuav Cua Siab Lub siab ntawm cov huab cua huv huv tau ntau dua 0.4Mpa, qhov huv yog 0.22um
Kev Siv Cua huv 500L/feeb 800L/min 600L/min 900L/feeb 1000L/min 1000L/min 1200L/min 2000L/min
Dej Txias Siab > 0.5kgf/cm2 (50kpa)
Dej Dej Txias 100L/H. 300L/teev 100L/H. 350L/teev 500L/H. 250L/teev 400L/teev 800L/teev
Kev Siv Nitrogen Raws li tus neeg siv khoom tshwj xeeb xav tau, peb tuaj yeem siv cov nitrogen los tiv thaiv lub tshuab, lub siab yog 0.6Mpa. Kev siv tsawg dua 45L/min
Khiav nrov <75dB
Chav xav tau Qhov kub ntawm ib puag ncig yuav tsum ≤26 ℃, av noo: 45%-65%, Max. av noo yuav tsum tsawg dua 85%
Zuag Qhia Tag Nrho 3.26x2.0x2.1m 4.72x2.6x2.1m ib 8m2,97x 2 5.52x2.7x2.1m 6.92x2.6x2.1m 11.8x2.97x2.1m 8.97x2.7x2.25m 8.97x4.65x2.25m
Qhov hnyav 3T ua 4T ua 6T tsi 5T ua 6T tsi 10T ua 8T tsi 12T tsi

IVEN Tsis-PVC mos lub hnab IV tshuaj turnkey cog tuaj yeem muab ntau hom hnab rau koj tsim:
